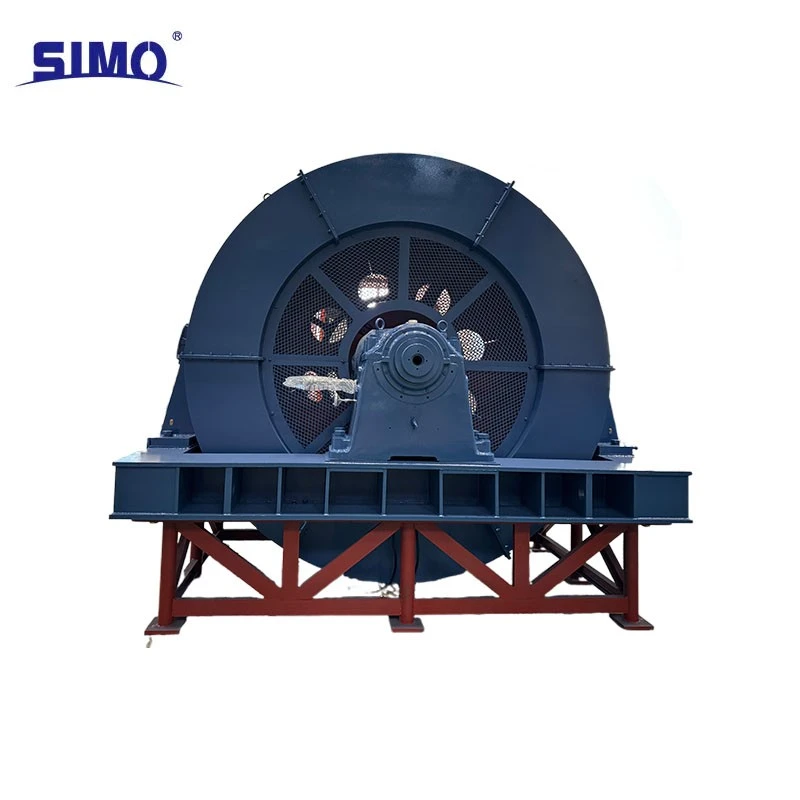

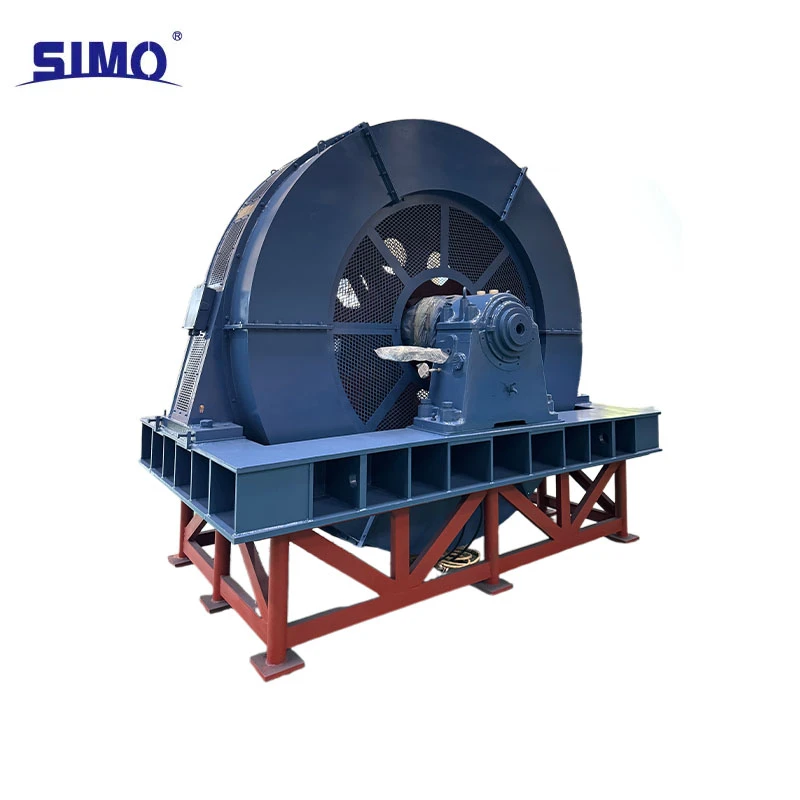

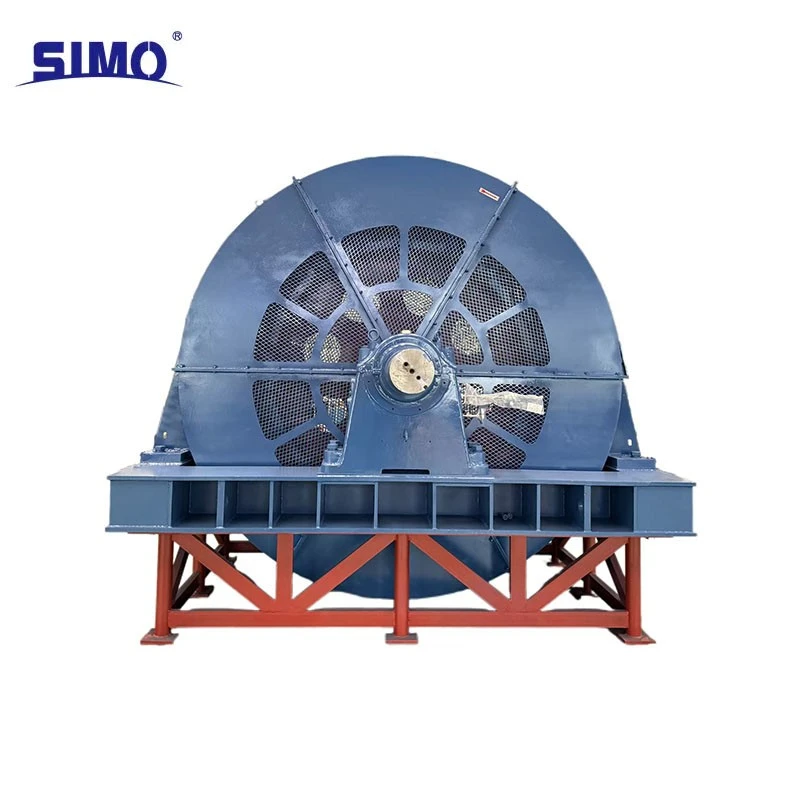

High torque motor-TDMK1000-36/2600-10 kV-IP20

1. General characteristics and bed

Welded frame made of steel sheets: has high rigidity and low deformation, adapted to the shock loads of mountain conditions; The output ends are integrated at the bottom, which ensures neat cable routing.

Open design (degree of protection IP20): protects against accidental contact with live and rotating parts, suitable for use in closed mining areas with low dust levels.

Natural air cooling (IC01): simple design with low maintenance costs, cooling is achieved by rotating the motor itself, suitable for continuous operation.

Horizontal installation like IM7311: rigid mounting on a high load-bearing capacity base, suitable for use with heavy equipment such as mills.

2. Stator system

Low-loss silicon sheet core: composed of 0.5 mm thick sector sheets with radial ventilation channels, ensures effective heat dissipation and low losses.

Winding with class F insulation, manufactured using mold technology: double short-circuited coils impregnated by vacuum -pressure impregnation (VPP), have high moisture resistance, resistance to high voltage and aging, adapted to high voltage conditions of 10 kV.

Reliable fastening and binding of the winding ends: prevents the winding ends from moving under the influence of vibrations and electromagnetic forces under heavy loads.

3. Rotor system

36-Pole Projecting Rotor: Extruded steel sheet poles with special field windings provide stable magnetic field and high torque density.

High Strength Steel Shaft: Heat treated for increased strength, withstands high startup loads and mill shock loads.

Thyristor excitation system: provides precise excitation control, maintains leading power factor and stable engine operation.

4. Bearings and auxiliary structures

Supports with bearings (oil -ring or combined): with insulating gaskets, block shaft current, reduce wear and extend the service life of bearings.

Cylindrical shaft end: provides direct connection to the mill coupling, transmits high torque and simplifies installation.

1. High adaptation to difficult mountain conditions

1000KW Large Power + Low Speed ​​High Torque (36 Pole): Provides direct drive of heavy equipment such as ball and rod mills without the use of gearboxes, simplifies transmission and reduces failure points.

Two starting modes: direct and reduced voltage: direct starting at full voltage is possible; When the power grid is insufficient, low-voltage starting is supported, adapting to different conditions of mountain power grids.

2. Energy efficiency and economy

High power factor of a synchronous motor (0.9 leading): compensates for reactive losses in the network, reduces the overall cost of electricity at a mining enterprise.

Low Loss Design: Optimized electromagnetic circuit with high quality silicon sheets ensures low operating losses and significant energy savings over long-term operation.

3. Stability and reliability of operation

Constant rotation speed: synchronous speed does not depend on the load, which ensures the stability of grinding and mill performance.

Reliable high-voltage insulation: insulation class F + VNP technology ensures resistance to high voltage 10 kV and vibrations under operating conditions, extending the service life of the insulation.

Adaptation to mountain conditions: IP20 protection℃and IC01 cooling are suitable for indoor mining operations at altitudes up to 1000 m and ambient temperatures up to +40 degree.

4. Original quality and full service support Sima

Rich experience in engine production (70 years): the technology heritage of the former Xi'an Electrical Machinery Plant, a full cycle of in-house production and comprehensive bench testing guarantee quality control at all stages.

Customized customization and technical support: Suitable for upgrading mining equipment, providing installation, commissioning, personnel training and lifelong spare parts supply services, reducing maintenance costs.
