CNC induction motor YVF280M-6A-55KW-380V-IC416-B3

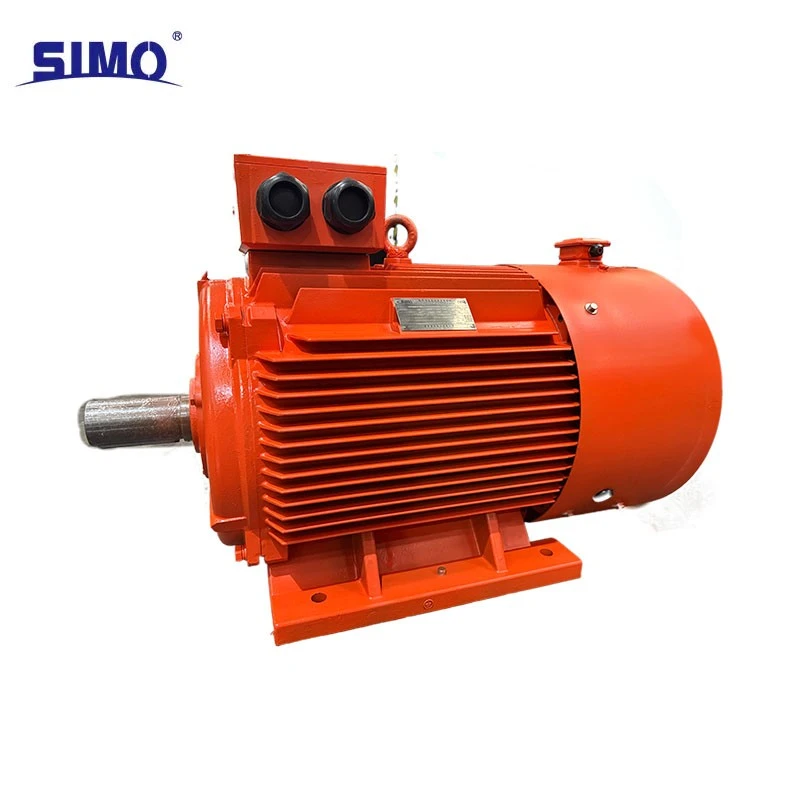

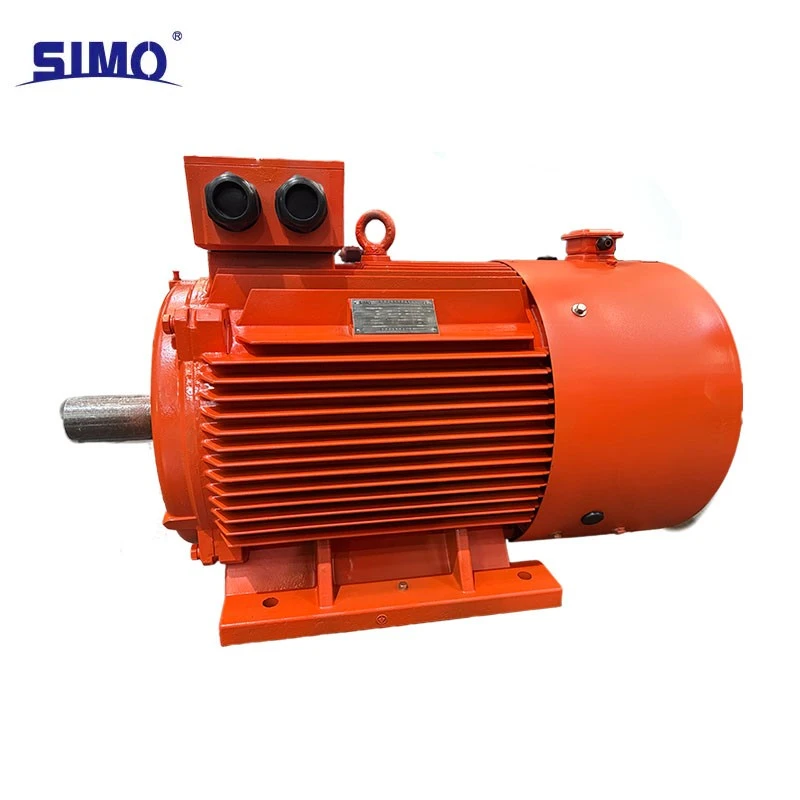

The YVF280M-6A - electric motor is a three-phase variable speed asynchronous motor with a modular and standardized design. In terms of mechanical design, the body is made of high-quality cast iron, equipped with parallel radiator fins to improve cooling efficiency; A support tray with shock-absorbing rods with return stroke is installed in the lower part, which can dampen vibrations, increase installation stability and prevent breakdowns due to resonance.

In terms of protection and cooling, a fully enclosed ventilated design (TEFC) with IP55 rating is adopted, adapted to harsh industrial environments; equipped with an independent forced cooling system with an imported axial flow fan, which provides effective cooling at any rotation speed and guarantees that the temperature rise meets the standards during long-term operation at low speeds.

In terms of electromagnetic and connecting design, the combination of stator and rotor slots has been optimized to adapt to inverter power modes, class F electrical insulating materials and vacuum pressure impregnation technology have been used to improve reliability; equipped with main and auxiliary connection boxes (hook-type design for ease of maintenance), which respectively provide connection to the power supply and auxiliary circuits (temperature sensors, encoders, etc.) and support expanded functionality.

One of the key advantages of - is excellent speed adjustability. The magnetic field is optimized using AMCAD software, suppressing high harmonics, providing wide speed adjustment range (continuous operation at 10%~100% rated speed), constant torque at lower frequency and overload capability at higher frequency; Compatible with a variety of inverters, combined with vector control, provides high-precision speed control and positioning, meeting the requirements of various operating conditions.

High reliability and stability. Class F electrical insulation combined with Class B thermal rise design provides resistance to high frequency surge surges from the inverter; High-precision mechanical parts and imported bearings, R-grade quality balance ensure low noise and vibration, support frequent starts and stops; IP55 protection and efficient cooling guarantee stable operation in difficult conditions (altitude up to 1000 m above sea level, temperature from -15℃to 40 degree).

Energy efficient and highly adaptable. Energy class meets IE2 standard, optimized electromagnetic design reduces losses, adapts to the loads of fans, pumps, etc., significantly reducing operating costs; Can be flexibly equipped with brakes and encoders for precise control, widely used in various industries; Standardized production technology ensures ease of repair and long service life at low total costs.
