Design features
1. High efficiency electromagnetic system
The motor is designed with an optimized electromagnetic circuit for high voltage, energy efficient environments. The stator and rotor are made of high-quality electrical steel, which can significantly reduce losses in steel and copper. The windings have a high-voltage corona-resistant insulating structure and undergo vacuum -press impregnation. Insulation class F ensures stable long-term operation at a voltage of 10 kV, high insulation strength and aging resistance.
2. Housing and℃of protection
The housing is made of welded high-strength steel, offering high rigidity and vibration resistance, making it ideal for harsh industrial environments. IP23 protection℃prevents accidental contact with live parts and protects against splashing water at an angle of up to 60 degrees to the vertical, which is suitable for industrial areas with moderate dust levels.
3. Cooling system IC01
The IC01 natural air cooling system with a built-in fan is used. The case has large cooling fins, which, together with the axial fan, create efficient air flow, ensuring stable temperature conditions under continuous load. The cooling system does not require complex external equipment and is simple and reliable in operation.
4. Mechanical and electrical design
The end caps are made of high-strength cast iron, and high-load bearings are installed, designed for continuous operation S1. The engine is equipped with a high-voltage sealed connection box, as well as separate boxes for auxiliary circuits (temperature sensors, heaters), which meets the safety requirements of high-voltage equipment.
Product advantages
1. High energy efficiency and cost-effectiveness
The motor complies with the high-voltage energy efficiency class. Compared to traditional high-voltage motors, power losses are significantly lower, which provides significant energy savings during long-term operation, especially on pumps, fans and compressors.
2. Stable operation under high voltage conditions
The high-voltage insulation design and optimized electromagnetic circuit guarantee stable operation in the 10 kV network without local discharges. The housing and IP23℃of protection allow the motor to be operated in dusty and humid conditions, which is suitable for continuous production processes in the metallurgical, chemical and energy industries.
3. Efficient cooling and low heating
The IC01 cooling system with large fins ensures efficient heat dissipation, low motor heating, which slows down the aging of insulation and extends service life. The absence of wearing parts in the cooling system reduces maintenance costs.
4. Flexible configuration and compatibility
The engine is equipped with interfaces for connecting temperature sensors and heaters, allowing it to be integrated into automated control systems for real-time condition monitoring. The installation dimensions comply with national and international standards, which makes it easy to replace old models without altering the bases.
5.Easy maintenance and low operating costs
The design is simple, without complex components. Routine work is reduced to periodic monitoring of bearings, contacts and cleaning of ventilation ducts. This reduces production downtime and overall operating costs.
Certificate
Certificates of conformity for SIMO motors

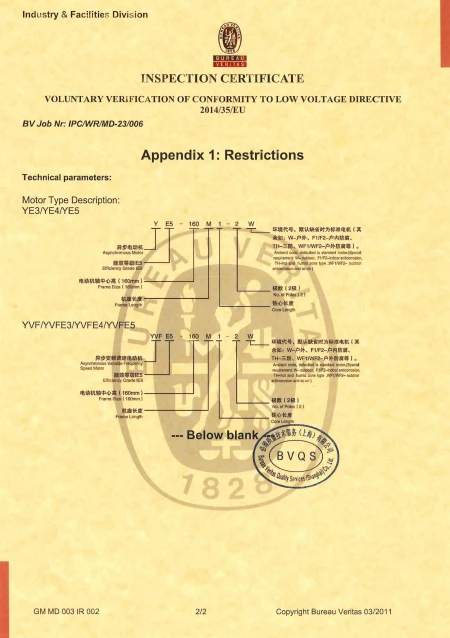

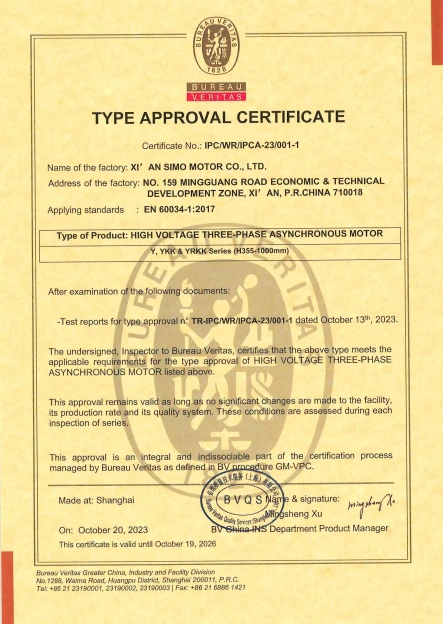

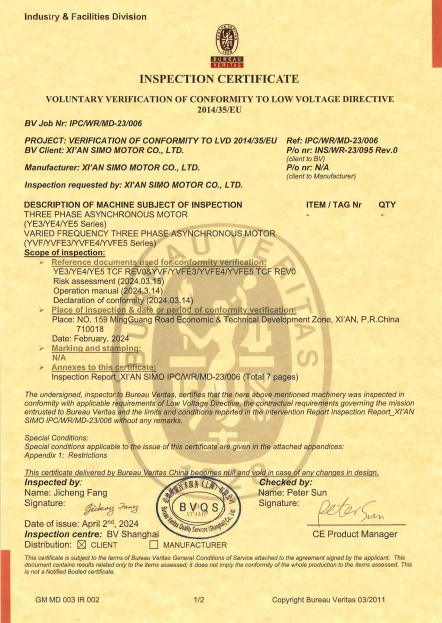

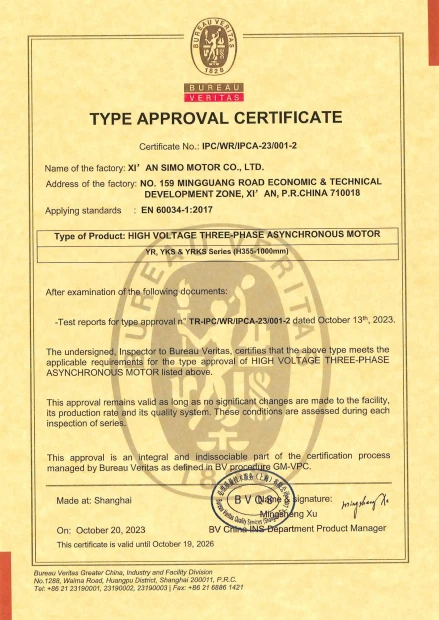

CE Certificate
CE Certificate
CE Certificate
CE Certificate

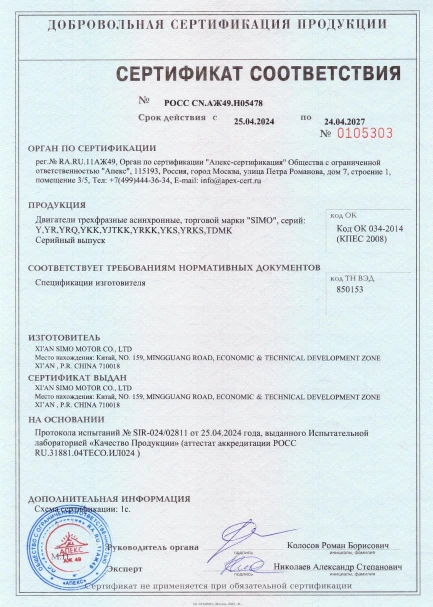

GOST certificate of the Russian Federation

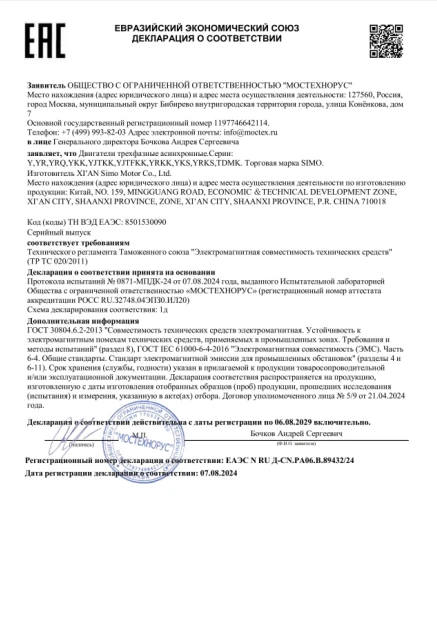

eac certificate
