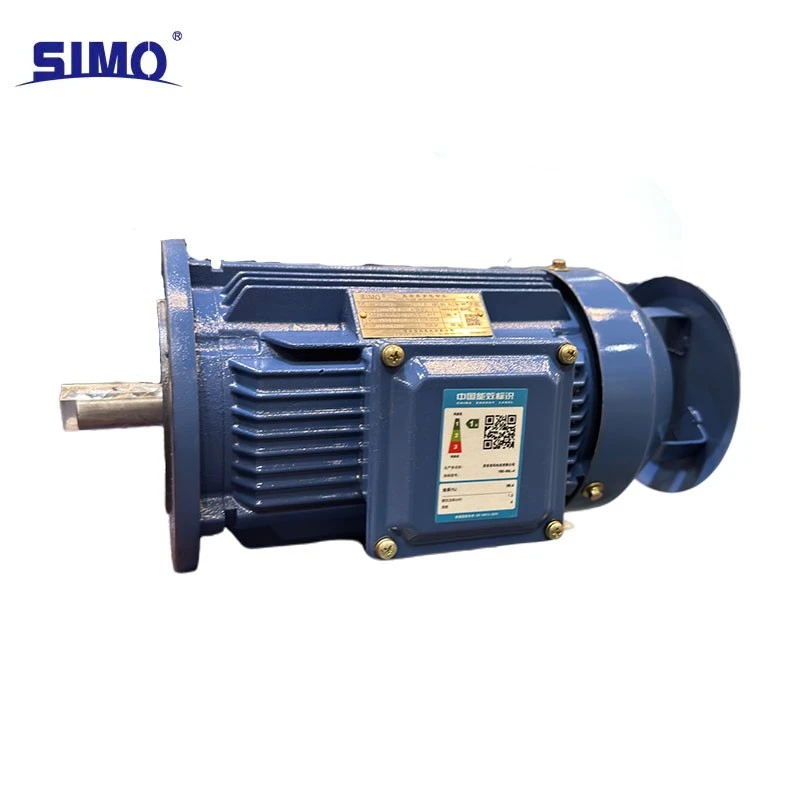

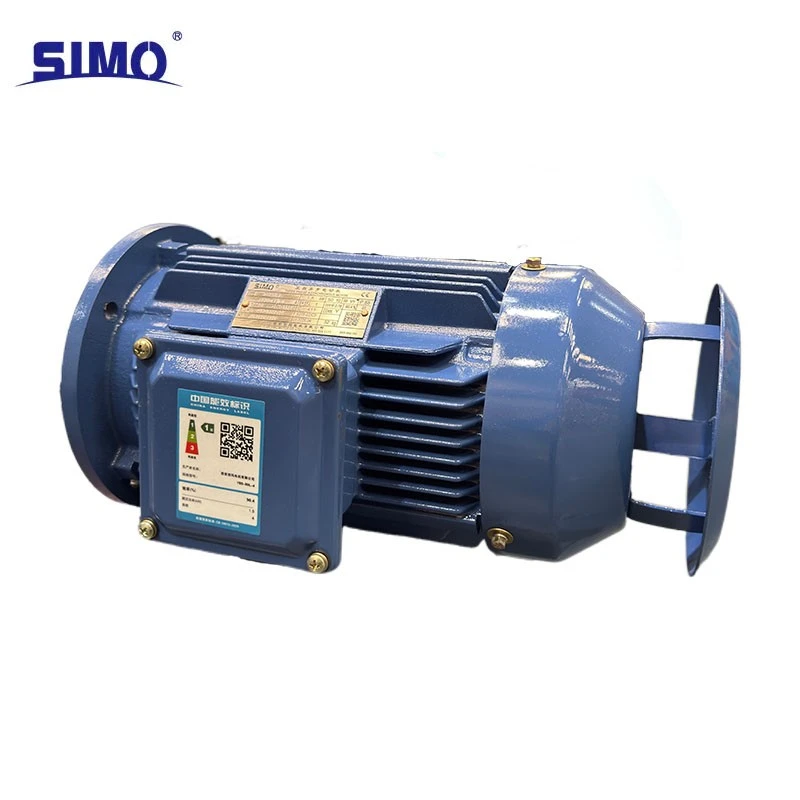

Asynchronous motor IP55-YE5-90L-4

Electric motor YE5-90L-4 with a power of 1.5 kW, voltage 380 V, with mounting design IM V1 and cooling system IC411 - is a low-voltage three-phase asynchronous motor of the highest energy efficiency class IE5, designed for stable long-term operation in industrial environments.

Electromagnetic part

Optimized electromagnetic design using low-consumption cold-rolled electrical steel reduces magnetic and electrical losses.

The winding is made of high-quality copper wire, class F insulation is used, which provides high heat resistance, a large heating margin and durability of the insulating system.

Design and installation

The body and covers are cast from high-strength cast iron, have increased rigidity, resistance to vibration and corrosion.

Mounting design IM V1 - vertical installation with flange, ideal for pumps, mixers and other process equipment.

The fully enclosed design with℃of protection IP55 reliably protects against dust and splashes of water and allows operation in dusty and damp industrial areas.

Cooling system IC411

Forced air cooling due to a fan mounted on the motor shaft.

Cooling fins on the body increase the heat transfer area; the design is simple, reliable, and does not require additional auxiliary equipment.

Bearing unit

Low-noise, durable bearings with extended lubricant life are installed.

The motor is designed for continuous operation S1; its compact dimensions and low weight simplify installation and replacement.

High energy saving and cost-effectiveness

          Complies with ultra-high energy efficiency class IE5. Compared to standard engines, power losses are significantly lower, which allows to significantly reduce energy consumption during long-term operation and reduce operating costs of the enterprise.

Reliability and long service life

          Low operating heat, Class F insulation and durable cast iron construction slow down the aging of insulation and mechanical components. The engine is resistant to load fluctuations, the minimum level of failures is suitable for intensive industrial use.

Comfortable operation

High-precision machining and high-quality dynamic balancing ensure minimal levels of vibration and noise during operation. Soft starting torque reduces the load on the electrical network and drive equipment.

Versatility and ease of maintenance

Overall and connection dimensions comply with international IEC standards, easily replacing outdated models Y, YE2, YE3 without modifications to the equipment. The simple design does not require complex maintenance, operating costs are minimal.

Compliance with modern requirements

          Fully compliant with national energy conservation regulations and low-carbon development policies, suitable for upgrading production and meeting carbon emission reduction requirements.
